Airport Travel App

Description

This is a Data Structure and Algorithm (DSA) project which my group and I completed during the second year of university.

It is an airport travel app named “FlyWhereAh?” that calculates the time, distance and cost incurred when travelling from one airport to another. The flight dataset is only limited to Asia.

The application makes use of multiple algorithms to determine the fastest and best (money for distance) routes to take. It also allows the user to manipulate the time to money ratio they want to save when searching for their desired flight route.

Features

• A Star
• Dijkstra
• Quicksort (Filtering of Routes)
• PyQt for GUI
• Pandas

Reflection

Language Used: Python

Software Used: PyQt for GUI

Role: Implementation of A Star Algorithm

Introduction

Although I was tasked with implementing the A Star Algorithm, it is crucical to know how the overall project worked.

Firstly, the airport route application required a dataset of Airport codes, which are unique identifiers assigned globally by the International Air Transport Association (IATA) or the International Civil Aviation Organization (ICAO).

We decided to use IATA codes for airports within Asia as it was more convenient at that point in time.

Dataset Preparation

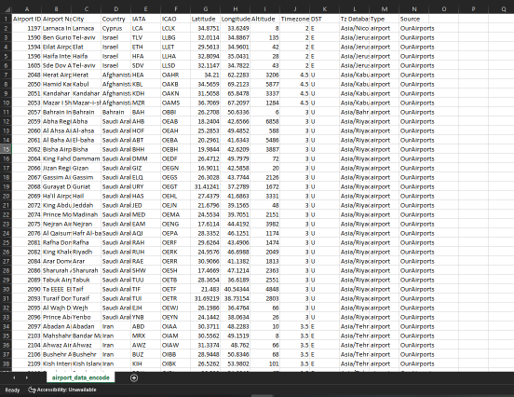

The first step to take was to search for datasets of Airport Codes. Our data was sourced from airports.dat from OpenFlights.

The airport codes were filtered by searching Asia in Tz Database column using Pandas library in Python.

Next, we sourced for data on the routes between these airports. Our routes are also filtered by flights between airports in Asia.

Afterwards, we have to manually calculate the distance, cost and time each route will incur (some calculated values may not be 100% accurate due to the limited data we had at that time but it is still viable for this project as a proof of concept).

• Using the latitude and longitude data, the distances between airports were calculated with the geopy library in python.

• Assuming that the average cost of travelling by plane is 0.15 SGD/Km, the cost between routes were calculated.

• Assuming that the speed of travelling by plane is 935 Km/Hr, the time between routes were calculated.

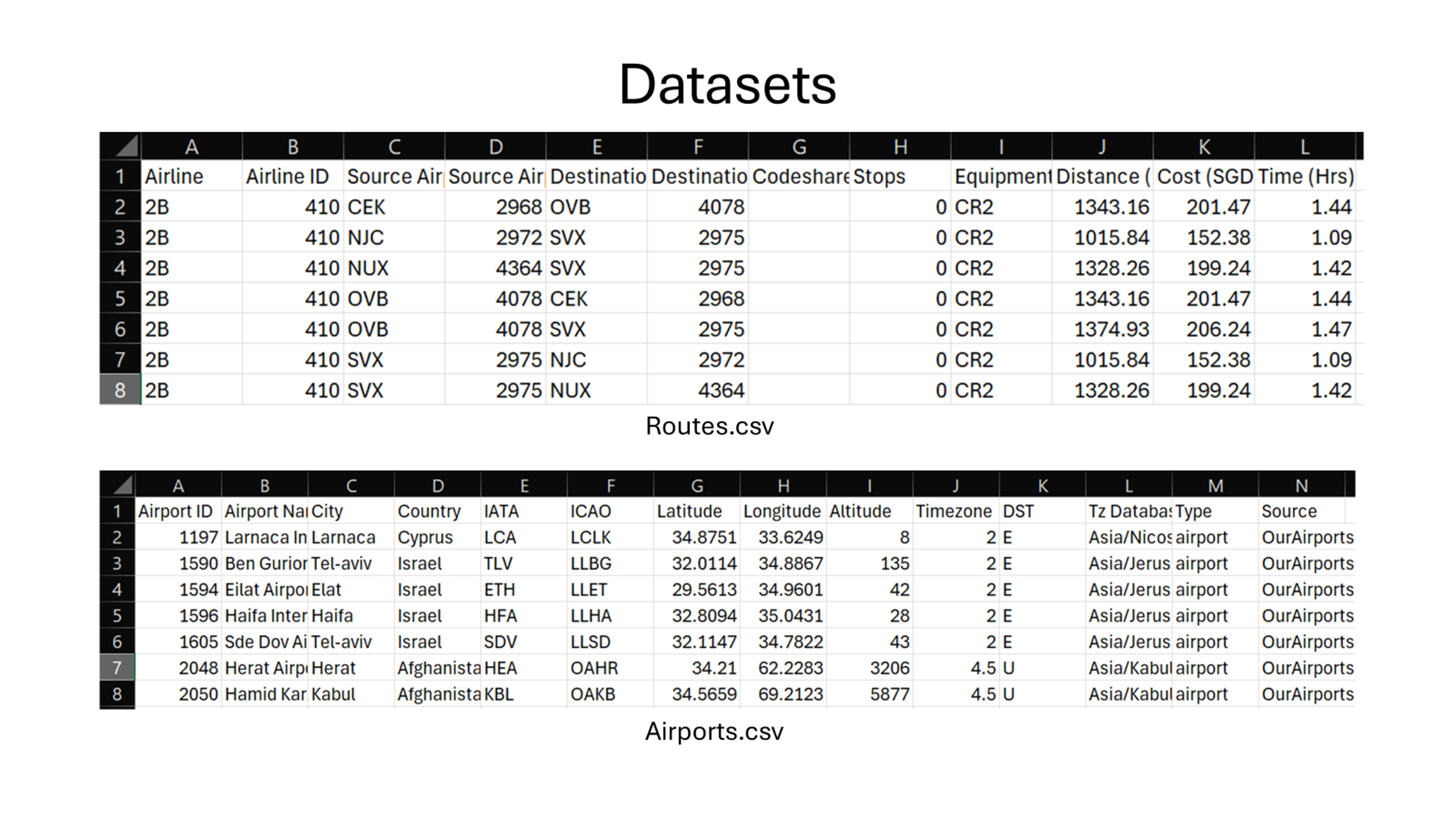

As such, we were left with this dataset:

Data Processing - A Star Algorithm

The A Star algorithm is able to determine the best path to a destination node based on user determined variables (heuristic and g cost).

Advantage: Unlike Dijkstra, A star does not explore all possible routes but instead takes the informed route, hence making it generally faster and more efficient than Dijkstra.

A Star Pathfinding Variables:

• Knows a general idea of how “far” the destination is (h cost)
• Knows how much the algorithm has “travelled” for each possible path chosen (g cost)
• Picks the node with the lowest sum of these two information (f cost)

To adapt this into our project, we have defined our airport travel route variables accordingly:

h Cost

The Great Circle Distance between two airports is used as the H cost for the algorithm to make sure that there is no overestimation of heuristic value.

g Cost

A mix of time and cost to travel to the other airport. The user can adjust time and cost weights to get results that has

• Less time
• Less cost

Calculation of g cost between neighbouring node = Time x 60 x timeWeight + Cost x costWeight

To account for layover time when the flight is not direct, we increase the time taken to travel between airports by 2 hrs when the number of nodes in our path to the destination exceeds 2.

f Cost

f cost is the sum of g cost and h cost:

fCost = gCost + (hCost/10)

The reason why h cost is divided by 10 is to ensure that these two variables are not overpowering the other with its sheer value.

A Star - Data Structure

The A Star Route Algorithm makes use of a graph data structure with weighted edges created with an adjacency list.

class AirportGraph:
    flight_routes:dict;
    """
    This dictionary is mainly used to store the routes (aka edges) between the airports
    key_0: Reference to an airport node
    value_0: A nested dictionary where

    key_1: The aiport node reference which key_0 is connected to
    value_1: A tuple that contains the time and cost needed to travel between the 2 airports
    """

    airport_nodes:dict;
    """
    A dictionary that has the key as the IATA (Unique ID) of an airport and the value is the airport node belonging to the corresponding to the IATA.
    """
    #region === Initialization ===
    def __init__(self, asia_airports, asia_routes,airline_ids,time_weight, cost_weight):
        self.time_weight = time_weight
        self.cost_weight= cost_weight
        self.flight_routes:dict= {}
        self.airport_nodes :dict = {}
        self.airlineIDs :dict = {}
        self.airport_nodes= self.add_airport(asia_airports)
        self.add_route(asia_routes,self.airport_nodes)
        self.populate_airline_ids(airline_ids)

As for the Airport nodes, they have details such as airport name, IATA code, latitude and longitude

#Node in the graph
class Airport:
    def __init__(self, name, city, country, iata, lat, lon):
        # data variables, should not be changed after intialization
        self.name = name
        self.city = city
        self.country = country
        self.iata = iata
        self.lat = lat
        self.lon = lon

The output data which we want to get is a list of FlightRouteInfo that we can backtrack from the source to the destination and present it on the map.

class FlightRouteInfo:
    def __init__(self, fromAirportName:str,toAirportName:str,fromAirportIata:str,toAirportIata:str,distBetween: float,cost:float,time:float,airlineName:str):
        # data variables, should not be changed after intialization
        self.fromAirportName = fromAirportName;
        self.toAirportName = toAirportName;
        self.fromAirportIata = fromAirportIata;
        self.toAirportIata = toAirportIata;
        self.distBetween = distBetween;
        self.cost = cost;
        self.time = time;
        self.airlineName = airlineName;

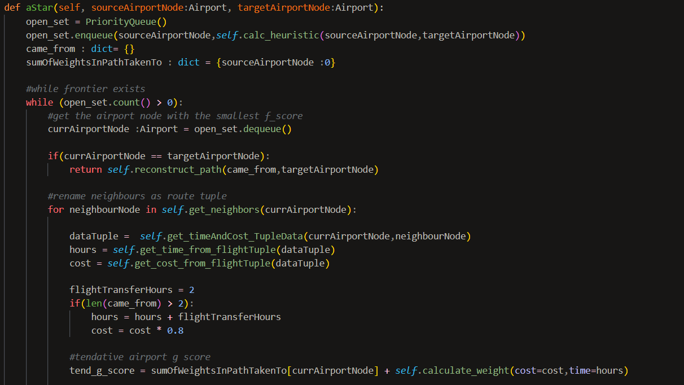

A Star - Algorithm

This video will be of great help to understand how A Star algorithm works.

In short, the A Star algorithm relies on a general sense of direction (h cost) and the travelled amount (g cost) to determine which neighbouring node in the graph to pick next. The neighbouring nodes which will get checked by the algorithm goes into a queue before getting sorted and checked.

Our A Star Algorithm’s open set uses a Priority Queue that uses a Min Heap. The Min Heap’s priority is set according to the f cost of each potential node, ensuring that only the nodes with the lowest f cost is checked first.

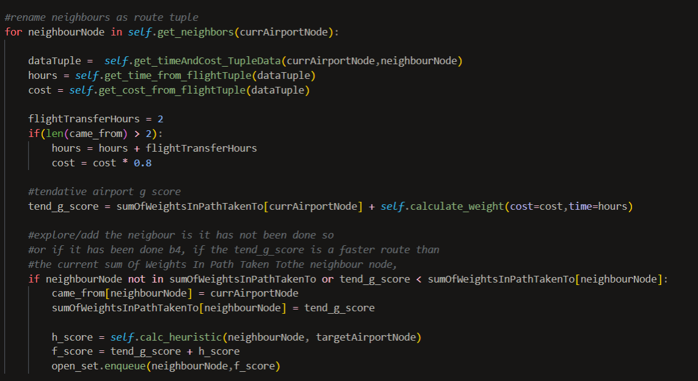

The A Star Algorithm considers a neighbouring node worth exploring if:

• it is unexplored
• g score of this node is faster than the previous way of getting to this node

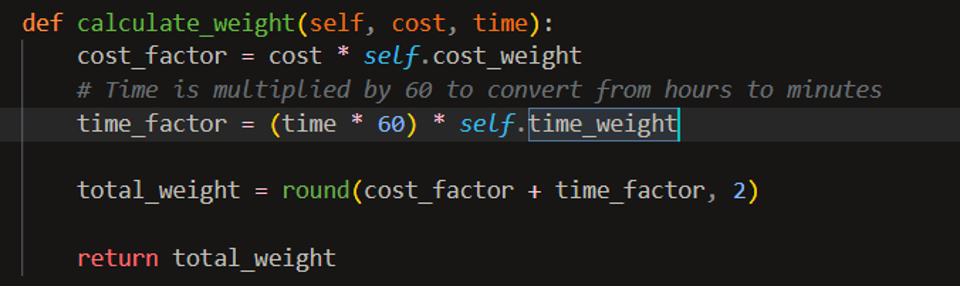

To allow for the user to decide how much lesser time vs lesser cost they wish to save, we included a calculate weight function that will affect the algorithm’s decision on the next “best” node.

As a result, when all of these parts come together, the A Star Algorithm becomes a very modifiable search algorithm that searches the best airport route based on the user’s interest.

Data Processing - Dijkstra Algorithm

Although not handled by me, the Dijkstra also plays a huge role in our application by allowing the user to find the shortest air travel route distance (regardless of cost or time) from one airport to another.

Now, the Dijkstra Algorithm determines the shortest path from one node to every other node within a weighted graph. As a Greedy Algorithm, it solves a problem by selecting the best option available at the moment.

Here are some advantages of using Dijkstra’s Algorithm:

• Dijkstra’s algorithm is optimized for graphs that have non-negative edge weights.
• It is simpler to implement than many other shortest path algorithms.
• Its best-case time complexity is O((V + E) log V).

However, it visits all of the nodes hence making it generally slower than A Star.

Dijkstra - Data Structure

For the Dijkstra data structure, a graph with non-negative weights is used to keep track of all of the nodes and the flight routes.

Flight = namedtuple('Flight', ['destination', 'distance', 'time', 'airline', 'cost']) # Update flight tuple.

class AirportGraph:
    def __init__(self):
        self.graph = defaultdict(list)

    def add_flight(self, src, dest, distance, time, airline, cost):
        self.graph[src].append(Flight(dest, distance, time, airline, cost))

    def get_neighbors(self, airport):
        return self.graph[airport]

The airport node will likewise be stored in a class called Airport:

class Airport:
    def __init__(self, name, city, country, iata, lat, lon):
        self.name = name
        self.city = city
        self.country = country
        self.iata = iata
        self.lat = lat
        self.lon = lon

    def __lt__(self, other):
        # Define the comparison based on the IATA code
        return self.iata < other.iata

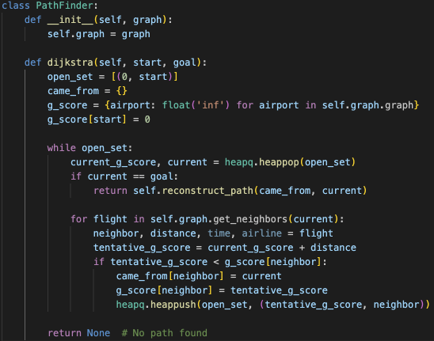

Dijkstra - Algorithm

To understand more about the Dijkstra Algorithm, watch this video!

The Dijkstra Algorithm chooses the current most shortest neighbour node to check for new routes. It is noted that if there is a better route that has not been visited, it will eventually be visited by the algorithm as Dijkstra visits all nodes.

In our project, the Dijkstra Algorithm, similarly to the A Star Algorithm, uses a priority queue to always ensure that the lowest tentative distance is always checked first.

After iterating through all nodes, the shortest path from start to end will be found.
